We are leading manufacturer and supplier of Liquid Nitrogen Tanks from India. Our wide range of cryogenic nitrogen storage tanks are frequently employed in oxygen and nitrogen production industries. The tanks are engineered professionally in order to store the maximum output and require low maintenance and upkeep cost. The implementation of new and latest design saves the time on installation process and thus helps the tank in becoming easier & fulfilling the flow requirements of gas and liquid applications.

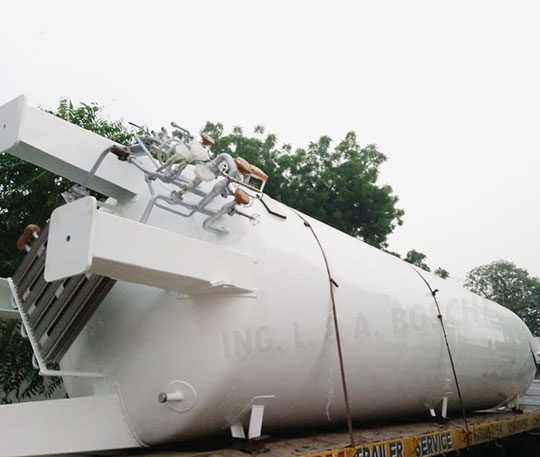

|LIQUID NITROGEN TANK: - From 500 L to 100000 L (Vertical & Horizontal) CAPACITY|
|Design Pressure||17 Bar|
|Design Temperature||(-) 196 oC.|
|Strengthening Test Pressure||25.4 Kg/Cm2g|
|Service||LOX/ LIN/ LAR|
|Design Code||ASME Section VIII|
Div.-1 Edition 2010 with Code Case
2596-1-2011 & SMPV (U) Rules 1981

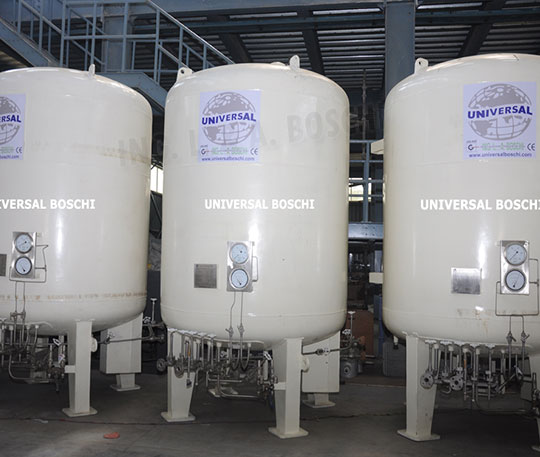

|Type||Double walled – Vertical Vessel supported on Legs.|
|Insulation||High Vacuum with perlite filled in annular Space.|
|Pipe Work||Stainless steel pipe work, detachable assembly Through flanged or union joints and pressure Building coil is manufactured of star finned Aluminium construction|
|Valve (inlet, outlet)||Cryogenic valves on liquid lines extended Spindle type of Bestobell valves, U.K. / Mack Cryo/ HEROSE, Germany.|
|Pressuring & full try cock||20NB/ 15NB extended spindle type.|
|Safety Relief Valves||2 No. with Divertor Ball Valves,Make – FAINGER LESER/ BRIGHTECH|
|Bursting Disc||1 No. Safety bursting disc for inner vessel.Make – BS&B Safety System (FMC Sanmar Group)|
|Cylinder filling connection||In built inside thermosyphon piping Arrangement with valves provided to make the Tank suitable for cylinder filling with negligible Losses.|
The tank will be fitted with the following :
- Tank inlet, outlet with cryogenic valves for liquid service.
- Connection to Vaporizer.
- Pressurizing coil with pressure build-up valve
- Full try cock valve.
- Liquid level indicator (D.P. Type) of General Instruments.
- Pressure gauge
- Safety relief valves – 2 Nos.
- Rupture disc for inner vessel and safety disc for jacket.
- Vacuum valve
